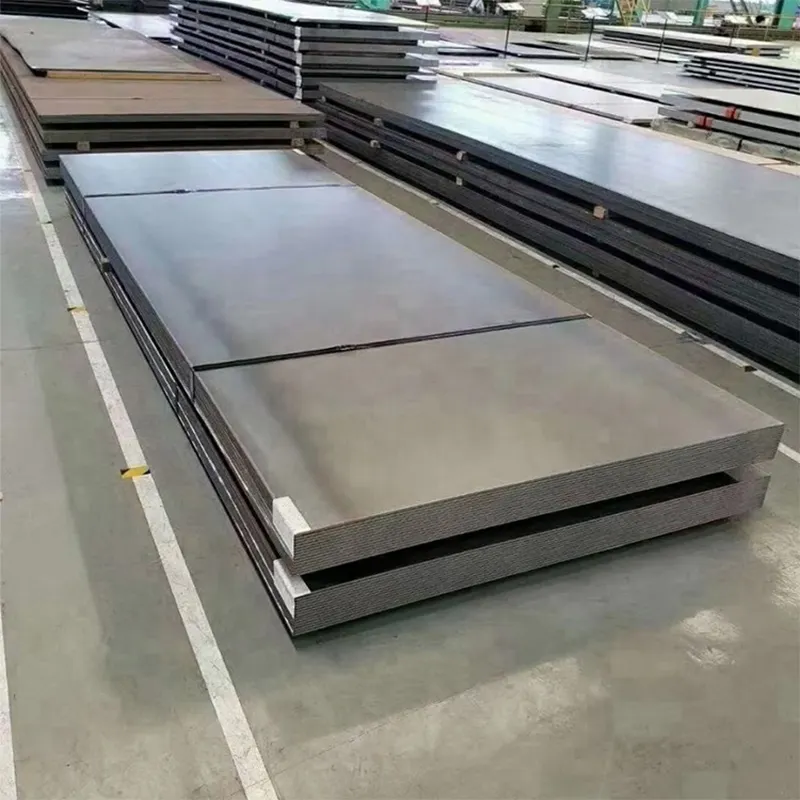

The flatness of cold rolled carbon steel sheets represents a critical quality parameter that directly impacts manufacturing efficiency and product performance across multiple industries. Understanding and controlling flatness tolerances ensures optimal results in downstream processing and final applications.
Flatness Classification Standards
Standard Flatness Grades:
Commercial (C): ≤6 I-units
Drawing (D): ≤4 I-units
Structural (S): ≤3 I-units
Special Flat (SF): ≤2 I-units
Measurement Methods:
I-unit measurement system (1 I-unit = 0.001" per inch)
Wave height measurement techniques
Laser-based flatness scanning systems
Off-line inspection protocols
Industry-Specific Requirements
Automotive Applications:
≤2 I-units for exterior panels
≤3 I-units for structural components
Strict edge wave controls
Appliance Manufacturing:
≤3 I-units for visible surfaces
≤4 I-units for internal components
Consistent flatness across entire coil
Factors Affecting Flatness
Production Process Variables:
Rolling mill tension control
Roll crown and profile
Cooling uniformity
Coiling parameters
Material Characteristics:
Steel grade selection
Thickness variations
Residual stress distribution
Microstructure uniformity
Flatness Control Technologies
Advanced shape control systems
Automatic gauge control (AGC)
Roll bending and shifting mechanisms
Tension leveling processes
Stress relief annealing
Quality Assurance Measures
100% inline flatness monitoring
Statistical process control charts
Periodic off-line verification
Customer-specific flatness audits
